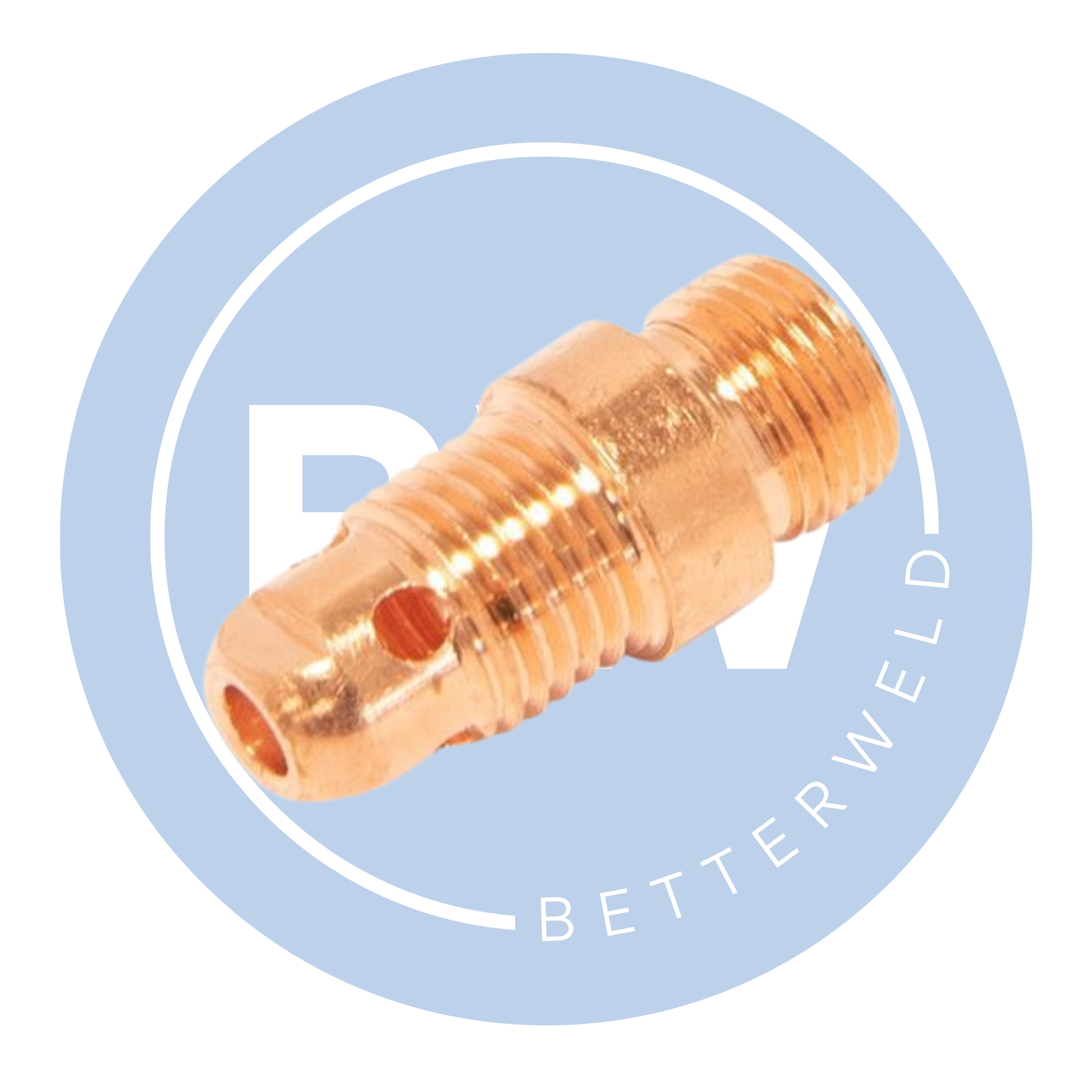

Stubby Collet Body For WP17/18/26 Torches [.020 - 1/8"]

The Stubby Collet Body is the essential hardware required to convert your standard large body TIG torch into a high performance, low profile tool. Engineered for WP17, WP18, and WP26 torches, this specialised collet body replaces the standard long collet body, allowing you to use the smaller 13N series consumables (nozzles and collets) typically reserved for the WP9 and WP20 micro torches.

By shortening the front end geometry, the Stubby Collet Body dramatically reduces the "headroom" of your torch. This is a game changer for fabricators working on roll cages, manifolds, or inside pipework where every millimetre of clearance counts. Despite its compact size, it is machined from high conductivity copper to handle the significant amperage ratings of the 17, 18, and 26 series torches. This version is universally compatible, accepting any tungsten electrode size from .020" (0.5mm) up to 1/8" (3.2mm), provided the matching stubby collet is used.

Key Features

Universal Conversion Base: The primary component needed to "shrink" the profile of WP17, WP18, and WP26 torches.

Wide Electrode Range: Supports everything from delicate .020" (0.5mm) to heavy duty 1/8" (3.2mm) tungsten.

Weldcraft Compatible: Direct replacement for industry standard stubby conversion kits (17CB20 style).

Compact Ergonomics: Enables the use of short back caps and small nozzles for maximum visibility.

Industrial Copper Build: Provides excellent electrical path and thermal dissipation for stable arc performance.

Download Product Specification Manual [WP17].

Download Product Specification Manual [WP18].

Download Product Specification Manual [WP26].
