Features and Applications
Rutile-cellulosic electrode with good weldability in all positions.
Exceptional arc stability and reduced spatter for decreased cleaning time.
Suitable for low open circuit voltage transformers (min. OCV 42V).
Typical applications include assembly, workshop and repair welding of mild and low-alloyed steels.
Re-drying not generally required. If necessary 100-110°C for 1 hour.
Test Certificates can be found online @wilkinsonstar247.com
Typical Base Materials
235JR-S355JR, S235JO-S355JO, P195TR1-P265TR1, P195GH-P265GH, L245NB-L360NB, L245MB-L360MB, shipbuilding steels: A, B, D ASTM A 106 Gr. A, B; A 283 Gr. A, C; A 285 Gr. A, B, C; A 501 Gr. B; A 573 Gr. 58, 65; A 633 Gr. A, C; A 711 Gr. 1013 API 5 L Gr. B, X42, X52*
* Illustrative, not exhaustive list
| Standards |
| EN ISO 2560-A - E 42 0 RC 11 |
| AWS A5.1 - E6013 |
| Analysis of all-weld metal % (Typical) | ||||
| C% | Si% | Mn% | P% | S% |
| 0.08 | 0.40 | 0.45 | 0.020 | 0.015 |
| Mechanical Properties (Typical) |
||
| Tensile Strength | 535 MPa | |
| Yield Strength | 445 MPa | |
| Elongation | 24% | |
| Impact Strength | ≥50 J | |
| Test Temperature | 0ºC |
|
Mechanical properties are approximate and may vary based on the heat, welding parameters and other factors.
| Welding Parameters | |
| Ømm | Current (A) |
| 2.50 mm |
50-90 |
| 3.20 mm | 80-130 |
| 4.00 mm | 140-190 |
Polarity
AC; DC (+)(-)
Welding Positions
EN ISO 6947 - PA, PB, PC, PD, PE, PF, PG

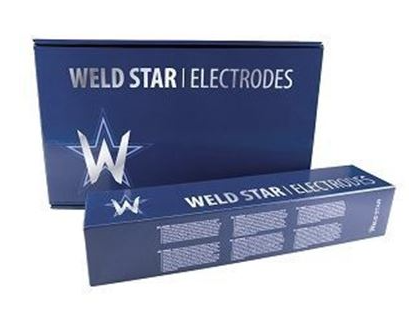

| Packaging Data | |||
| Diameter x Length ø (mm) |
Packet Weight (kg) |
Electrode Pieces Per/Packet | Carton Weight (kg) |
|
2.50 x 350 3.20 x 350 4.00 x 350 |
5 5 5 |
~ 265 ~ 170 ~ 110 |
15 15 15 |
