ArcTrode E6013 RC electrodes are versatile, rutile-cellulosic coated stick welding rods designed for welding mild and low-alloy steels. They deliver a stable, easy-striking arc with minimal spatter and produce smooth, well-formed weld beads. Their all-position capability (flat, horizontal, vertical, overhead) makes them a reliable choice for fabrication, maintenance, repair and general workshop welding work.
Ideal for jobs ranging from light fabrication to structural repairs — the 5 kg pack ensures you have enough rods for multiple projects, offering cost-effective and consistent performance.
Key Features
Rutile-Cellulosic Coating – Easy Arc & Low Spatter
The flux coating ensures a smooth, stable arc and reduces spatter, making cleaning up easier and improving weld appearance.
All-Position Welding (Flat, Horizontal, Vertical, Overhead)
Suitable for all standard welding positions, giving flexibility for a wide range of jobs and joint configurations.
Wide Base-Material Compatibility – Mild & Low-Alloy Steels
Works well on common steels (e.g. S235, S355, and similar low-alloy grades), making it a general-purpose electrode for structural fabrication, maintenance and repair work.
Good Mechanical Properties
Offers reliable weld strength and ductility: typical weld-metal tensile strength ~ 535 MPa, yield ~ 445 MPa, elongation ~ 24%.
Suitable for Low-Voltage Transformers
Can be used even with low open-circuit voltage machines (min OCV ~ 42 V), making it compatible with a wide range of welding equipment. Wilkinson Star 247

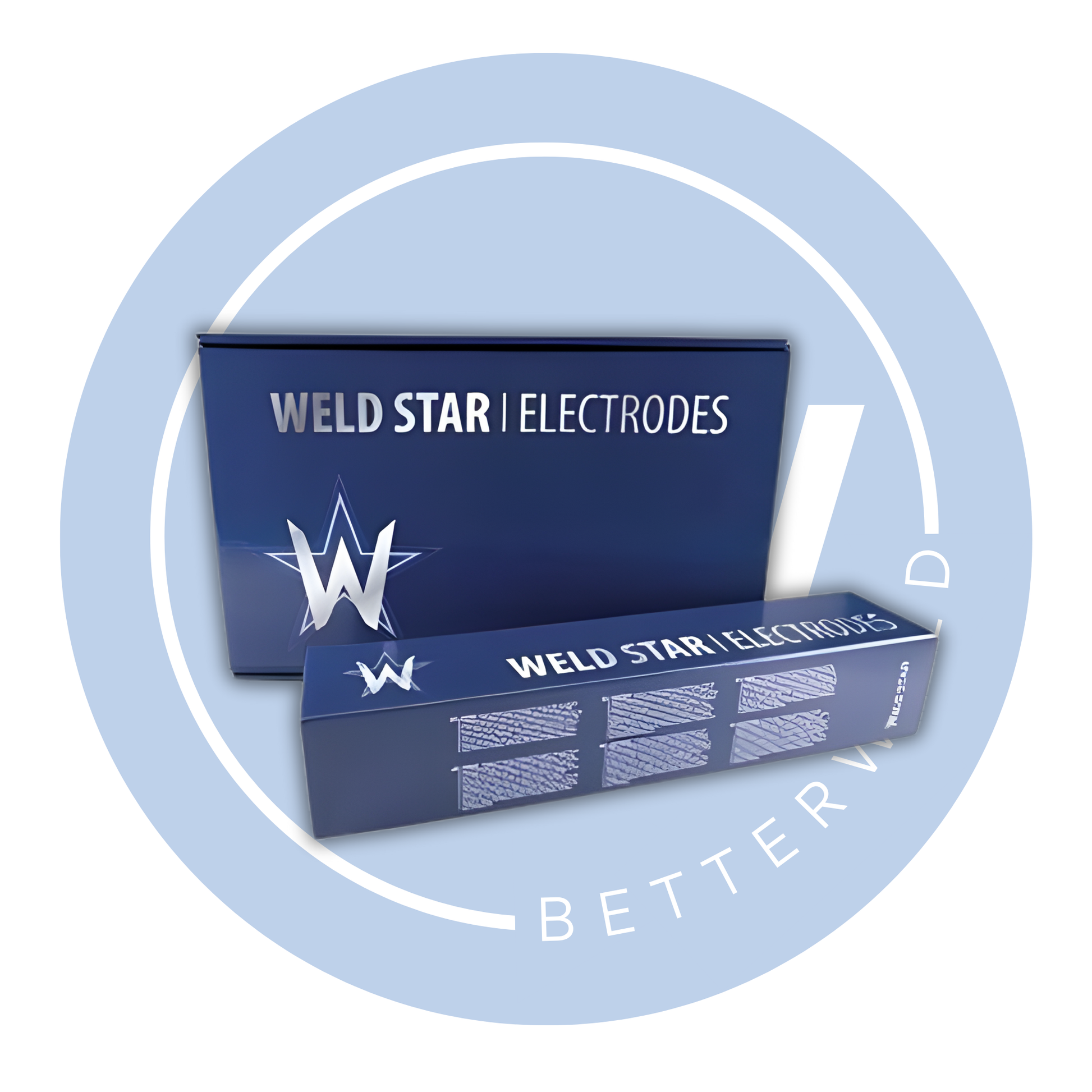

Large 5 kg Pack – Great for Workshops and Production
Bulk pack size means fewer frequent re-orders — ideal for workshops or regular welding tasks where electrode usage is high.
Typical Base Materials
235JR-S355JR, S235JO-S355JO, P195TR1-P265TR1, P195GH-P265GH, L245NB-L360NB, L245MB-L360MB, shipbuilding steels: A, B, D ASTM A 106 Gr. A, B; A 283 Gr. A, C; A 285 Gr. A, B, C; A 501 Gr. B; A 573 Gr. 58, 65; A 633 Gr. A, C; A 711 Gr. 1013 API 5 L Gr. B, X42, X52*
* Illustrative, not exhaustive list
| Standards |
EN ISO 2560-A - E 42 0 RC 11
|
AWS A5.1 - E6013
|
| Analysis of all-weld metal % (Typical) |
| C% |
Si% |
Mn% |
P% |
S% |
| 0.08 |
0.40 |
0.45 |
0.020 |
0.015 |
Mechanical Properties (Typical)
|
| Tensile Strength |
535 MPa |
|
| Yield Strength |
445 MPa |
|
| Elongation |
24% |
|
| Impact Strength |
≥50 J |
|
| Test Temperature |
0ºC
|
|
Mechanical properties are approximate and may vary based on the heat, welding parameters and other factors.
| Welding Parameters |
| Ømm |
Current (A) |
2.50 mm
|
50-90 |
| 3.20 mm |
80-130 |
| 4.00 mm |
140-190 |
Polarity
AC; DC (+)(-)
Welding Positions
EN ISO 6947 - PA, PB, PC, PD, PE, PF, PG
| Packaging Data |
Diameter x Length ø (mm)
|
Packet Weight (kg)
|
Electrode Pieces Per/Packet |
Carton Weight (kg) |
|
2.50 x 350
3.20 x 350
4.00 x 350
|
5
5
5
|
~ 265
~ 170
~ 110
|
15
15
15
|
