The Cebora P150/CP160 Cutting Tip series represents the peak of high power plasma consumables. Specifically engineered for the robust Prof 150 (P150) and CP160 torch models, these tips are designed to handle the extreme thermal loads generated by currents up to 150 Amps. Whether you are performing precision parting on 10mm plate or severing heavy 40mm structural sections, this series provides the necessary orifice diameter to maintain a stable, high velocity plasma jet.
Available in four specialised sizes:

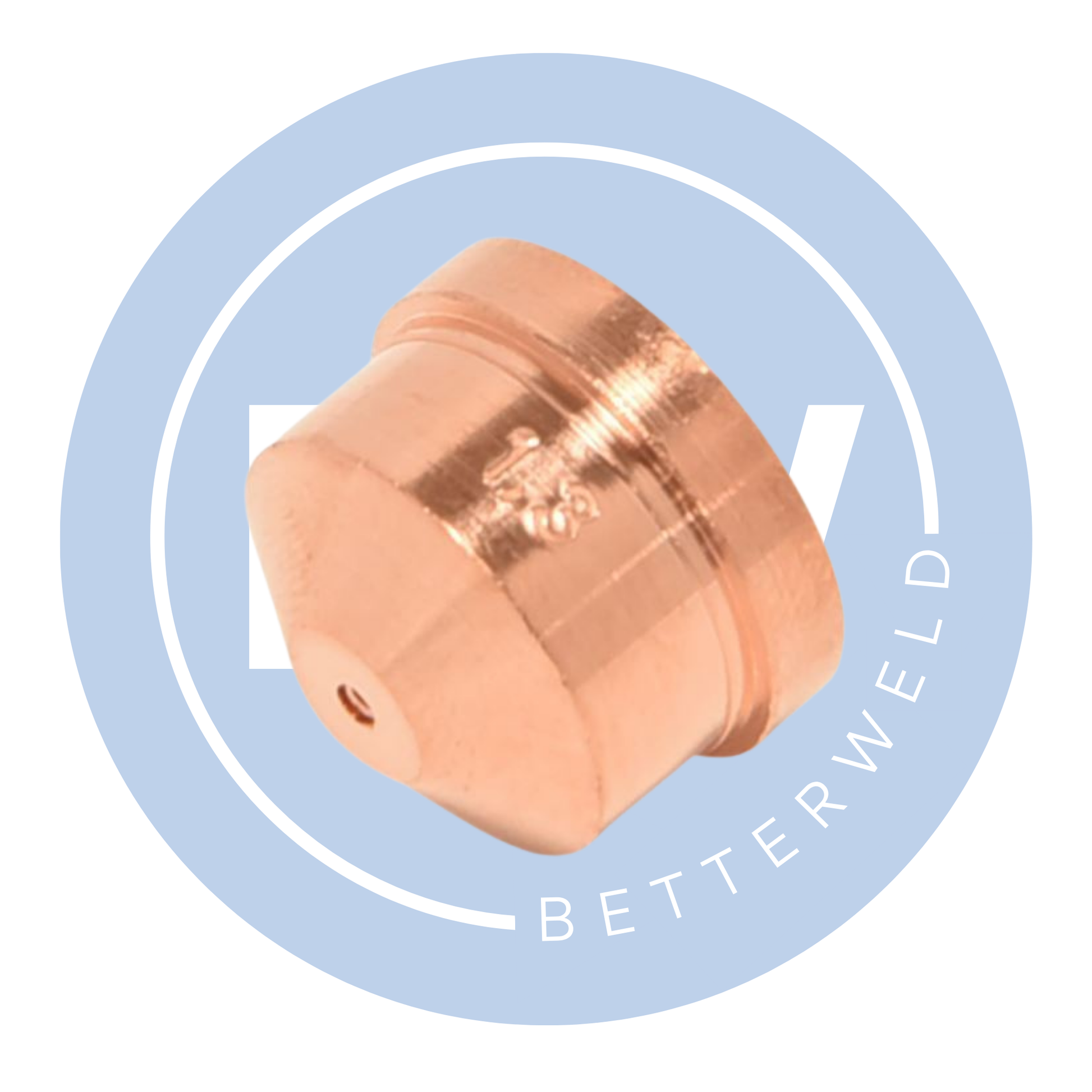

- 1.1mm (60A): Ideal for clean, mid range fabrication and refined edge quality.
- 1.35mm (90A): The versatile "workhorse" for general industrial plate work.

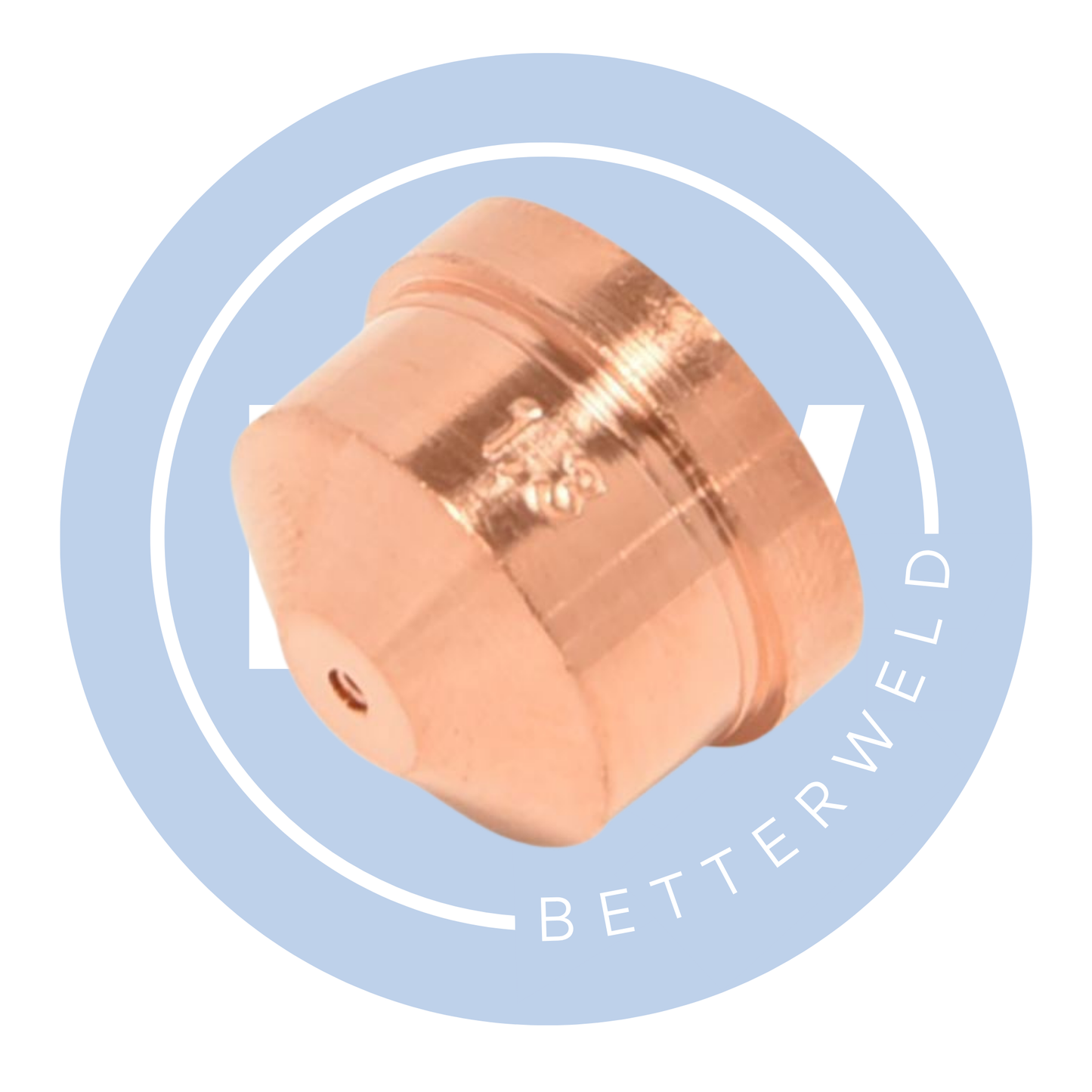

- 1.6mm (120A): High speed penetration for heavy duty structural components.

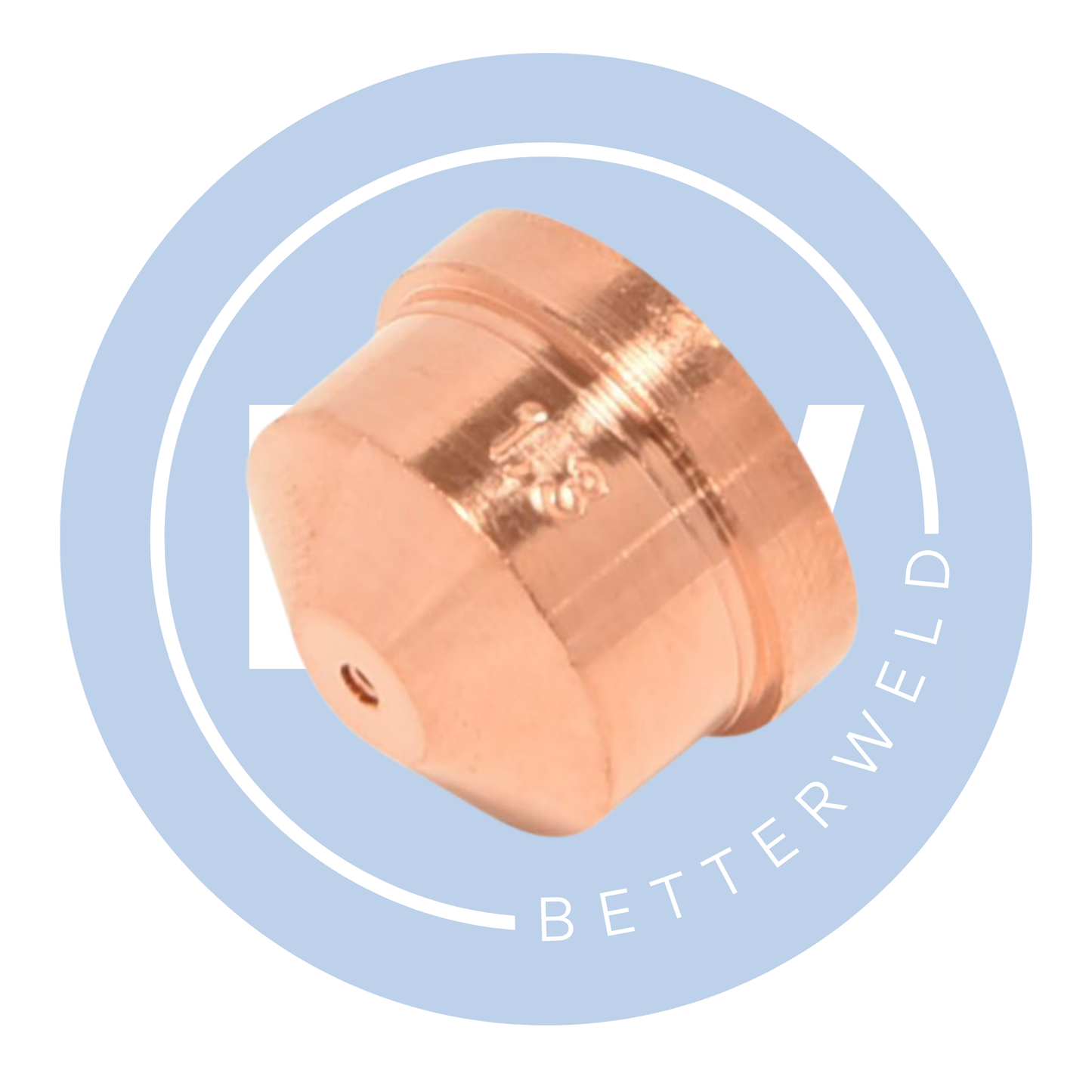

- 1.8mm (150A): Maximum power for the thickest materials and high amperage parting.
Manufactured from premium, high density copper, these tips are built to survive the intense heat of continuous industrial cycles, ensuring square edges and minimal post cut clean up.
Sold in packs of 10 - great for everyday use or stocking.
Key Features
Cebora P150 & CP160 Compatibility: Guaranteed direct fit for the high power P150 and CP160 manual and automated torches.
Extreme Amperage Range: Fully optimised for power settings from 60A to a heavy duty 150A.
Precision Orifice Sizing: Matches air flow perfectly to the chosen amperage for a concentrated arc and reduced kerf.
High Conductivity Copper Alloy: Superior thermal management prevents tip "blow outs" during high duty cycle applications.
Laminar Gas Flow Engineering: Internal geometry reduces turbulence, providing a more stable arc and cleaner, square cuts.
X-Ray Quality Edges: Designed to produce consistent, professional-grade results on carbon steel, stainless, and aluminium.
