Electrode Cap Round Tip/Conic Tip Cap D=13mm [8mmID]

The 13mm Electrode Cap Series is engineered for high volume automotive collision repair and precision industrial spot welding. Designed with a standard 8mm Internal Diameter (ID) and a 18mm overall length, these caps are the primary wear part for high performance inverter welding guns.

We offer two specialised tip geometries to ensure optimal weld nugget formation:

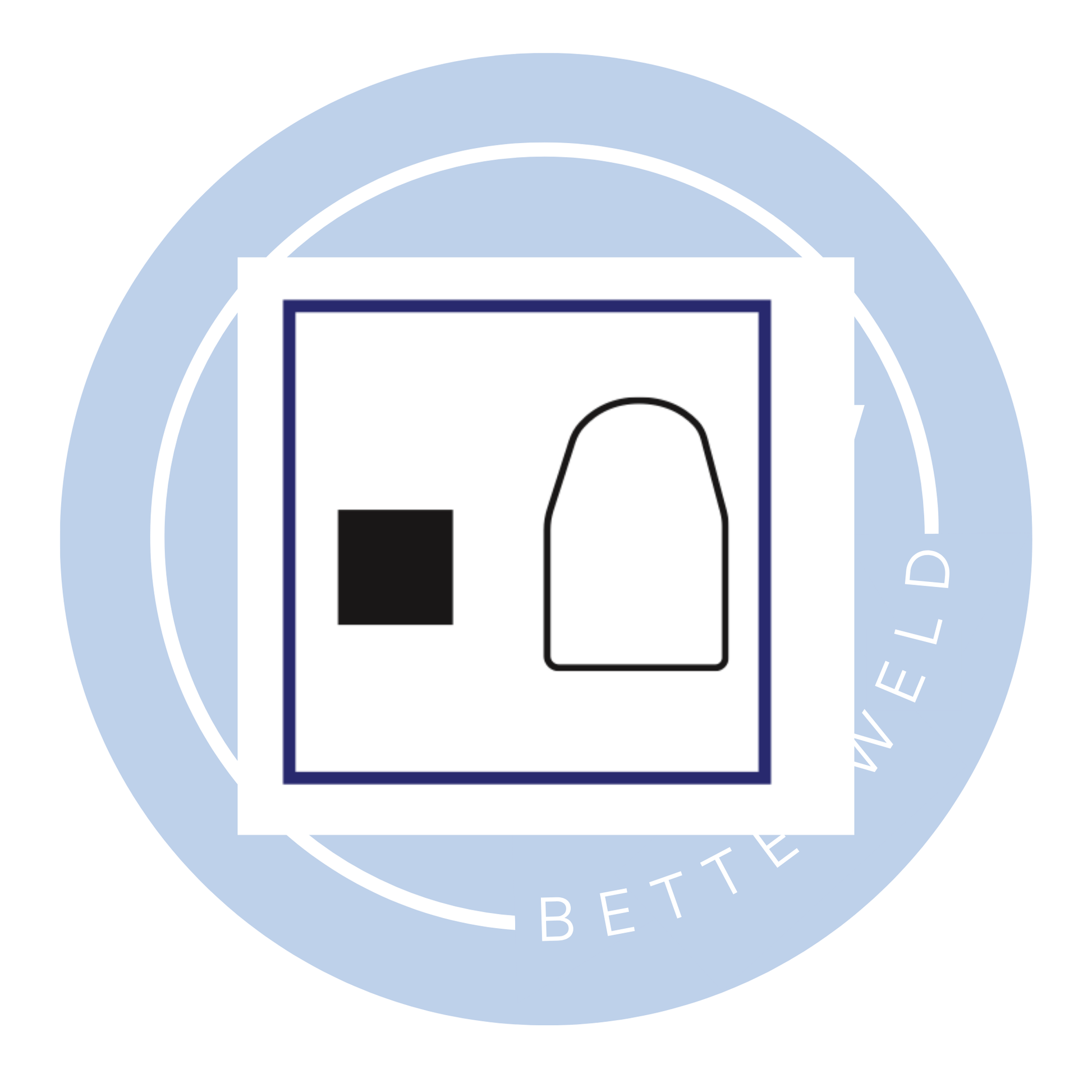

Round Tip (Domed) Cap: The universal choice for thin to medium gauge steels (0.5mm - 3.0mm). The rounded face allows for self alignment on uneven surfaces and provides uniform pressure distribution, which reduces deep indentation and results in a cleaner cosmetic finish on car bodies.

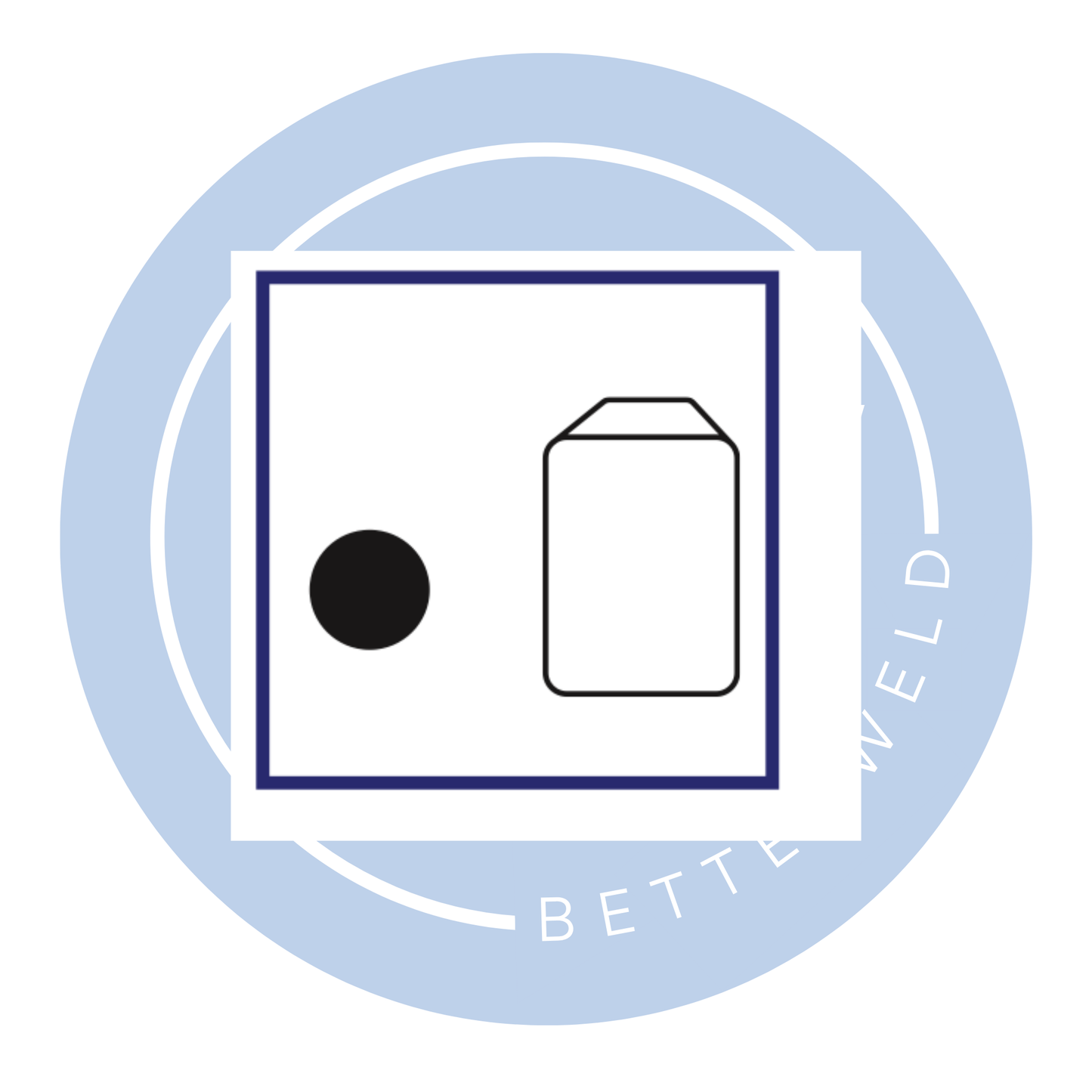

Conic Tip (Truncated) Cap: Engineered for maximum current density. The tapered "Conic" design focuses the electrical energy into a smaller area, making it ideal for welding high resistance materials like Stainless Steel or thicker plate stacks where deep penetration is required to break through surface oxidation.

Key Features

Inverter Welder Compatibility: Guaranteed direct fit for Tecna, GYS (IMS), Pro Spot, Car-O-Liner, and Telwin spot welding systems.

8mm Internal Diameter: Precision taper for a secure, leak free fit on 13mm electrode shanks.

Premium CuCrZr Alloy: Manufactured from Copper Chrome Zirconium for high thermal conductivity and extreme resistance to "mushrooming" under heat.

Cold Formed Durability: Advanced manufacturing ensures consistent electrical resistance across every batch.

Quick Change Design: Designed to be replaced in seconds without removing the entire electrode arm.

Versatile Material Performance: Excellent results on uncoated low carbon steel and coated high strength steels.
