The Exact Bevel Tip Holder is the precision engineered core of the PipeCut Bevelling system. Designed for high speed, professional pipe preparation, these holders ensure a mathematically perfect bevel angle every time, eliminating the guesswork and inconsistency of manual grinding.
Whether you are preparing schedule-40 pipe for a standard V-butt weld or specialised high pressure fittings, these holders maintain a rigid, vibration free platform for the carbide bevelling tips. By providing a fixed geometry, they allow the operator to achieve a "mirror finish" bevel with a consistent root face (land), which is essential for automated orbital welding or high quality manual root passes.
Available in the three industry standard angles:

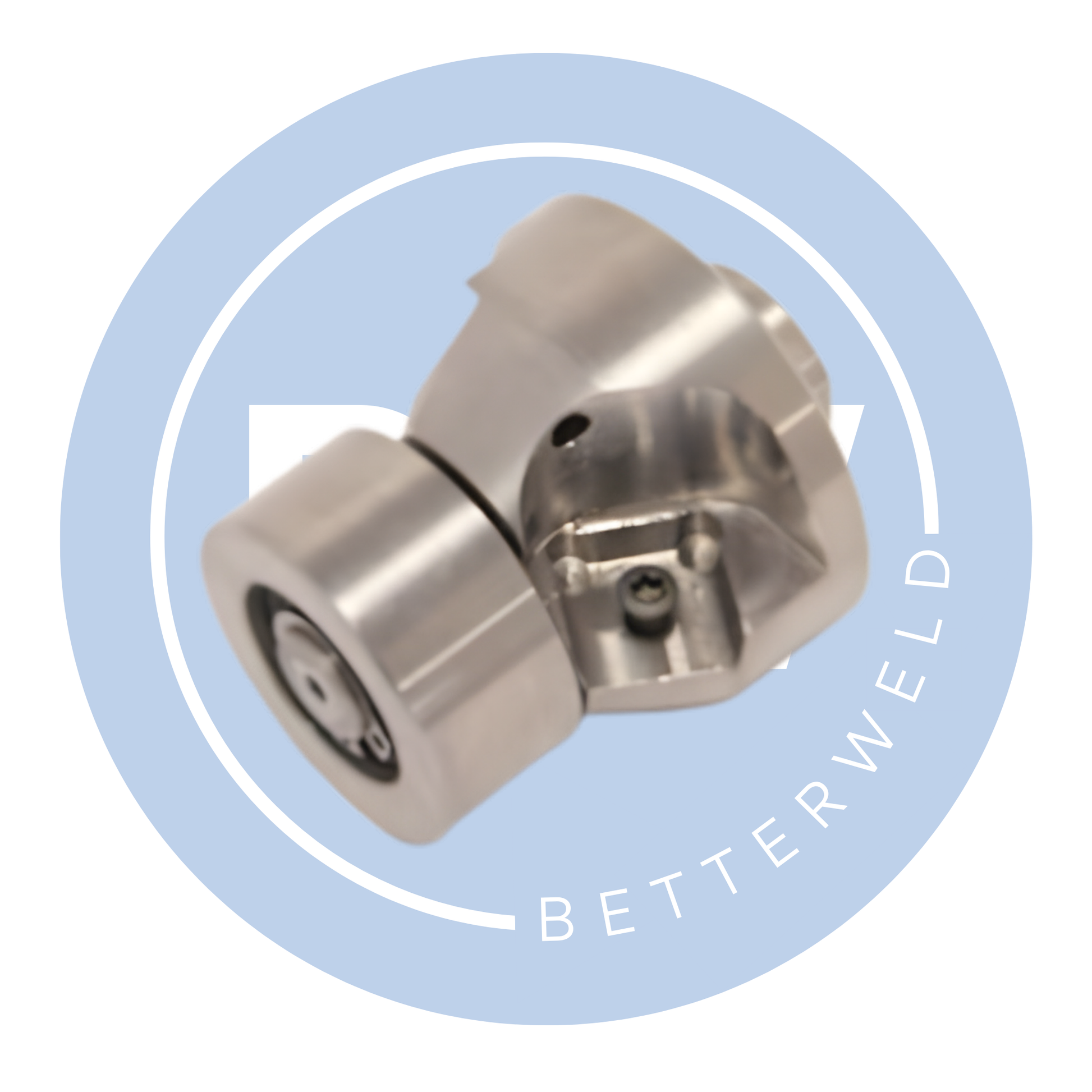

30° Holder: The standard for general structural piping and light wall vessels.

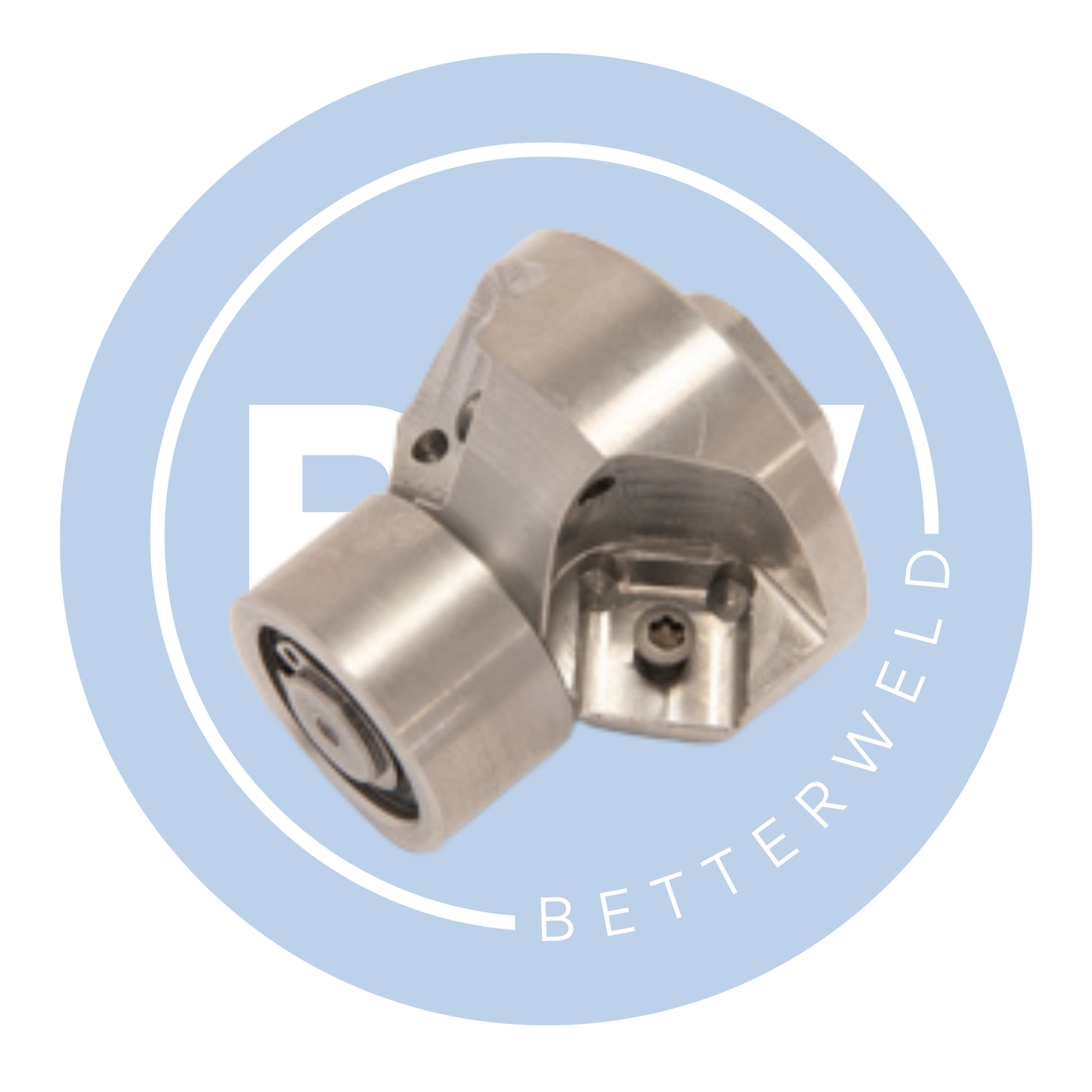

37.5° Holder: The global standard for high pressure oil, gas, and steam piping (75° included angle).

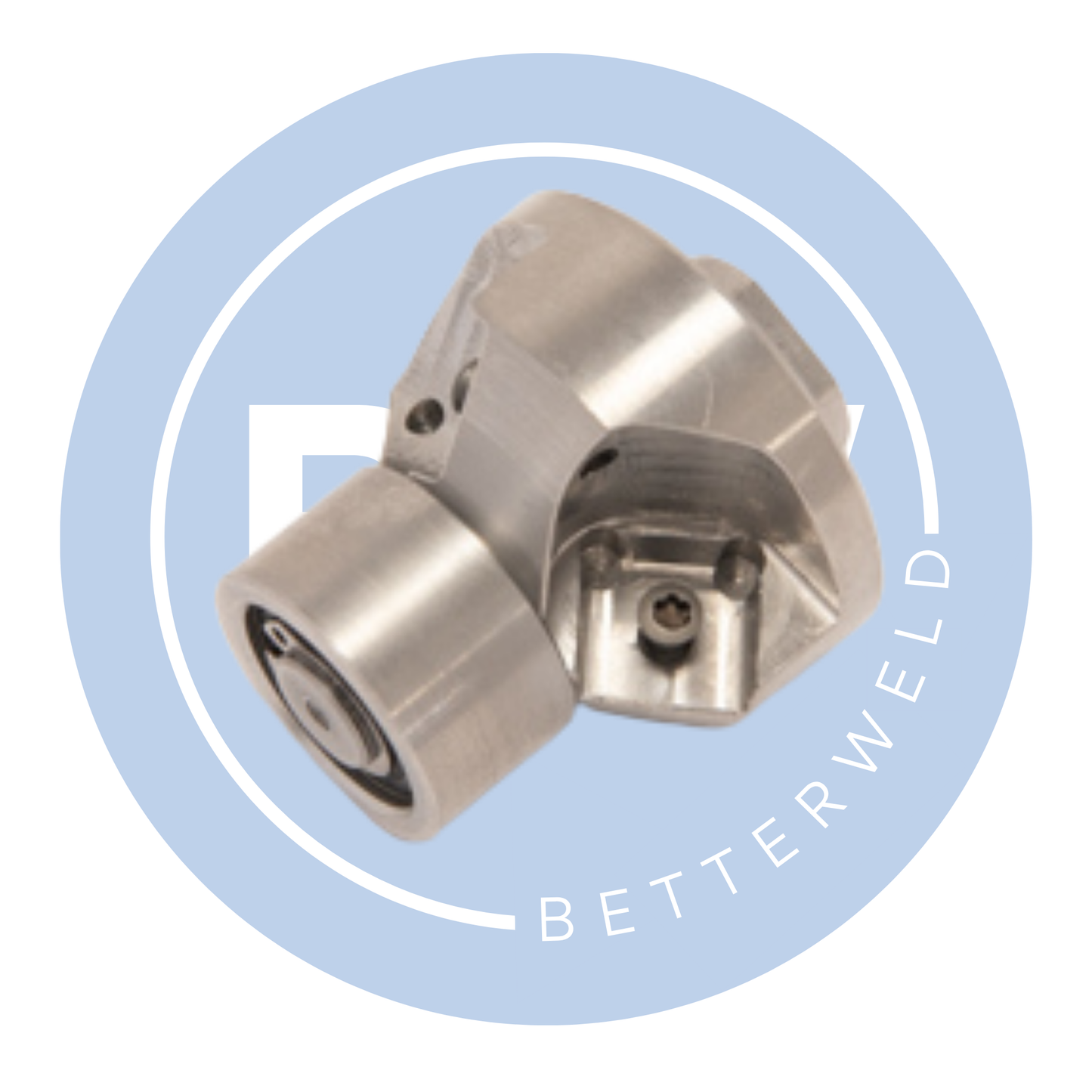

45° Holder: Optimised for heavy wall thickness and specialised flange to pipe transitions.
Key Features
Exact PipeCut Compatibility: Guaranteed direct fit for the Exact PipeBevel 220E and 360E series.
Fixed Angle Precision: Eliminates "angle drift" during long production runs on large diameter pipes.
Rapid Tip Change: Designed for quick indexing or replacement of carbide bevelling inserts.
Hardened Steel Construction: Built to withstand the high centrifugal forces and heat of continuous mechanical bevelling.
Consistent Root Face: Engineered to maintain a uniform land across the entire circumference of the pipe.
Vibration Dampening: Precision balanced to reduce chatter, resulting in a smoother surface finish.
