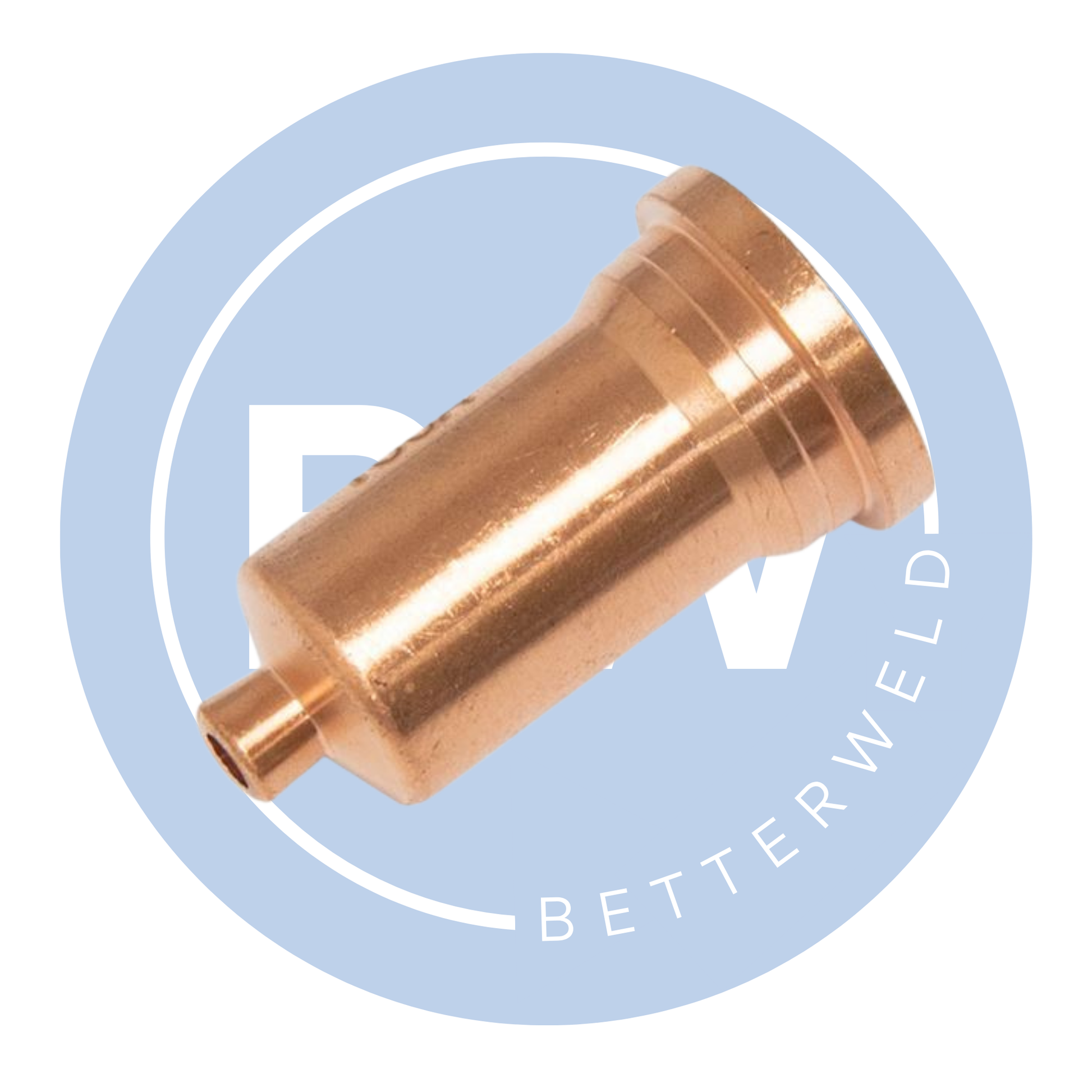

Gouging Tip [Back Striking] For PT-100 Welding Torches

The PT-100 120A Gouging Tip is the ultimate tool for high capacity metal removal. Designed for the industrial PT-100 / IPT-100 blowback torch series, this tip is calibrated for a massive 120 Amp output. Unlike standard cutting tips that pierce through the plate, this gouging nozzle produces a wide, high energy plasma "flame" that shaves off metal in controlled layers.

Utilising Back Striking technology, this tip ensures a reliable arc ignition without the need for high frequency interference, protecting your machine's internal components. Whether you are removing a 1 inch thick structural weld, back gouging a root pass for a certified X-ray joint, or washing away heavy wear plates on mining equipment, the PT-100 gouging tip provides the thermal stability and arc width required to get the job done quickly.

Key Features

Universal PT-100/IPT-100 Fit: Direct fit for 100A and 120A torches used on heavy duty industrial inverter plasma cutters.

120A High Output Orifice: Optimised for maximum metal removal rates, significantly faster than carbon arc gouging.

Back Striking Technology: High reliability blowback internal start system ensures clean ignition and reduces power supply stress.

Wider Gouging Geometry: Produces a broad, shallow groove, perfect for removing weld defects or preparing U-joints.

Extreme Heat Resistance: Precision machined from premium high density copper to withstand the massive radiant heat of a 120A gouge.

Multi Material Capability: Superior performance on mild steel, stainless steel, and heavy aluminium plate.
