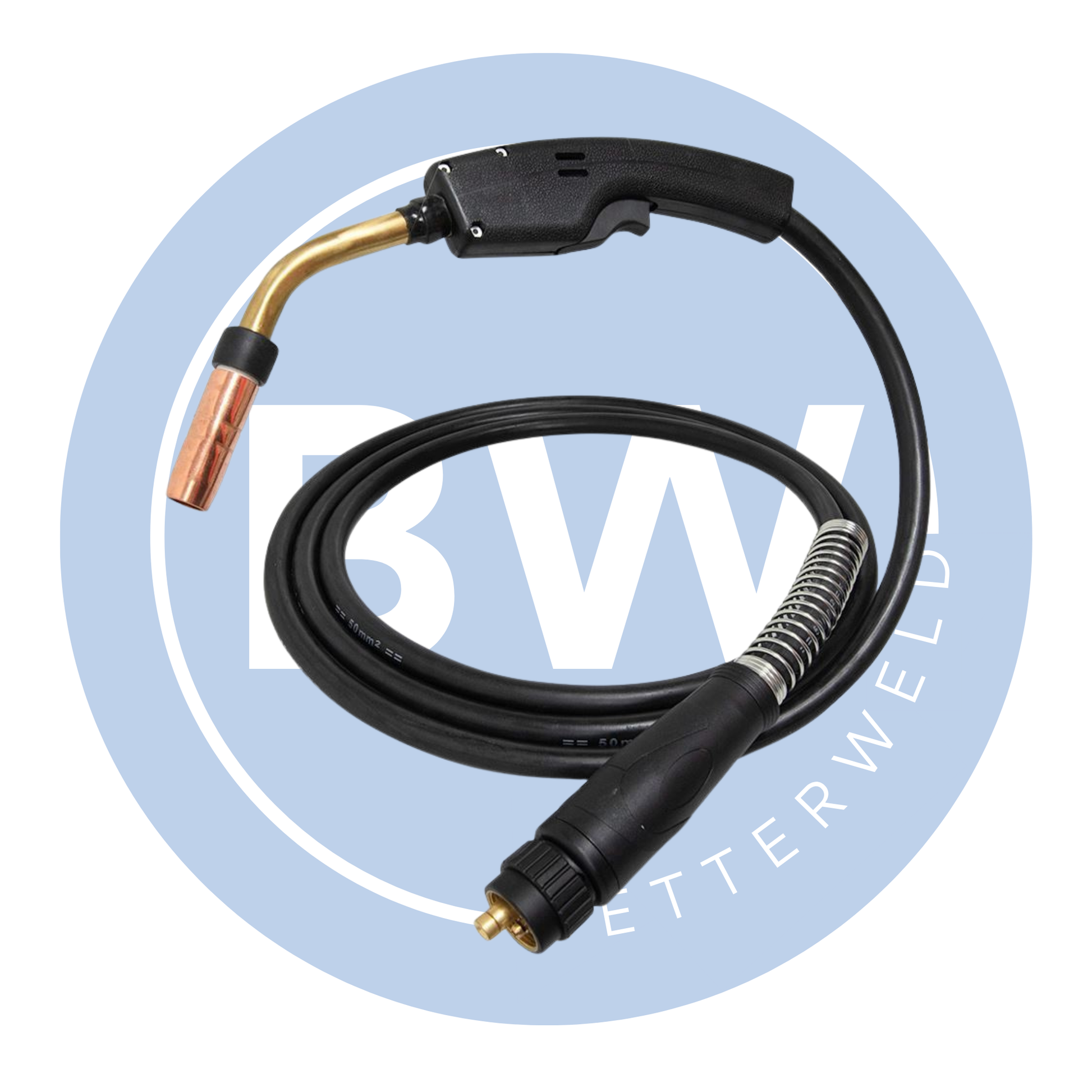

SP502 MIG Torch [Spring Pins]

The SP502 MIG Torch with Spring Pins is the ultimate air cooled solution for high amperage industrial welding. Engineered as a premium alternative to the Bernard® 500-Amp series, this torch is designed for the most punishing environments, from heavy structural steel fabrication to shipyard production.

Equipped with Specialised Spring Pins, this version of the SP502 provides a secure, consistent electrical connection to feeders designed for this specific pin configuration, eliminating arc start issues caused by poor signal contact. Available in 10ft (3m) and 15ft (4.5m) lengths, the SP502 features a high mass copper conductor tube and a "stay cool" curved handle that allows the operator to weld at high duty cycles without handle heat soak. Whether you are running 1.6mm solid wire or heavy gas shielded flux core, the SP502 delivers the thermal resilience and wire feed precision required for critical, heavy gauge welds.

Key Features

Bernard® Compatibility: Fully interchangeable with standard 500 Amp Bernard style consumables (Centerfire™ or Quik Tip™ systems).

Reliable Spring Pin Connection: Specifically designed for feeders requiring spring loaded control pins for a secure, "no fail" trigger signal.

500A Extreme Amperage: The highest rated air cooled platform for heavy duty structural and industrial work.

High Mass Heat Sink Design: Oversized copper internals and heavy walled nozzles dissipate heat rapidly, extending the life of the contact tip.

Rugged "Shop-Proof" Handle: Constructed from high impact, glass reinforced polymers to withstand drops and extreme radiant heat.

Multiple Length Options: 10ft for production cells and 15ft for maximum reach on large scale fabrications.

Download Product Specification Manual [SP502-10ft].

Download Product Specification Manual [SP502-15ft].
