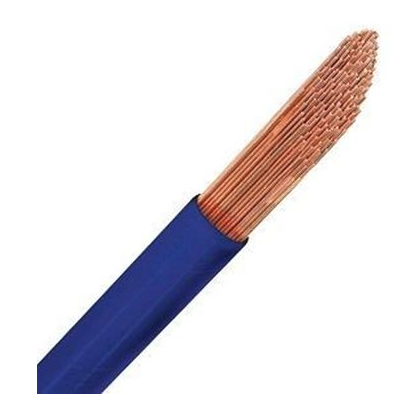

Weld Star - A15 (ER 70S-2) TIG Wire (2.4mm) 5kg

Regular price £42.00

Tax included. Shipping calculated at checkout.

Features and Applications

Micro-alloyed steel, triple de-oxidised (Ti, Al, Zr) suitable for the welding of C-Mn and low-alloy steels.

Ideal for use on greasy and oxidised surfaces subsequent to any coating processes. (i.e. galvanised steel)

Works well at low temperatures.

Typically used on tanks, containers, car industry, structural work, household appliances, pipelines, boilers, naval & petrochemical sectors etc.

Green wire is produced using virgin raw materials sourced from specialised steel mills, which ensures consistent reliability and quality.

Test Certificates can be found online @wilkinsonstar247.com


Typical Base Materials

A106, A210, A234 S355J2, S380N, P235GH, GS 45, P295GH, P355GH, S355N*
* Illustrative, not exhaustive list


EN ISO 636-A - W 2Ti
AWS A5.18 - ER 70S-2


Chemical Composition % (Typical)
C% Si% Mn% P% S% Cu%
0.06 0.60 1.20 <0.020 <0.020 <0.25
Cr% Ni% Mo% Al% V% Zr+Ti%
<0.10 <0.10 <0.050 0.100 <0.030 <0.15


Mechanical Properties (Typical)
Tensile Strength 560 MPa
Yield Strength 480 MPa
Elongation 24%
Impact Strength 50 J
Test Temperature -30ºC

Mechanical properties are approximate and may vary based on the heat, shielding gas, welding parameters and other factors.


Shielding Gases

EN ISO 14175 - TIG: I1 (Argon)


Welding Positions

EN ISO 6947 - PA, PB, PC, PD, PE, PF


Packaging Data



1.00 mm

1.20 mm

1.60 mm

2.40 mm

3.20 mm

1000 mm

1000 mm

1000 mm

1000 mm

1000 mm

5 Kg

5 Kg

5 Kg

5 Kg

5 Kg

Liability: Whilst all reasonable efforts have been made to ensure the accuracy of the information contained, this information is subject to change without notice and can be only considered as suitable for general guidance.
