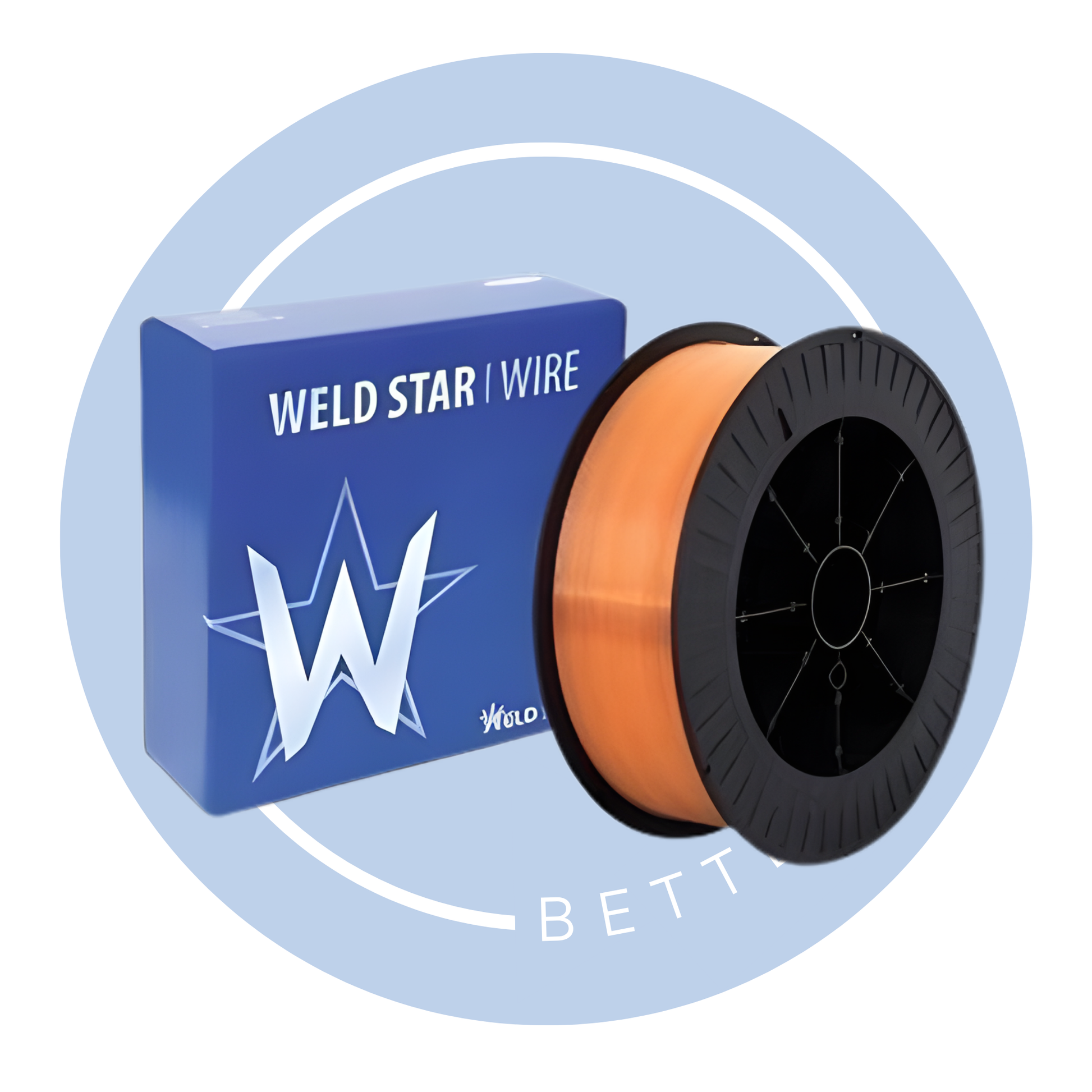

Weld Star A30 (ER 70S-A1) Wire [15kg Spool]

Engineered for critical high temperature applications, Weld Star-A30 is a premium copper coated MIG wire alloyed with 0.5% Molybdenum (Mo). Conforming to the ER70S-A1 specification, this wire is specifically designed for welding creep resistant steels such as 16Mo3 and similar carbon molybdenum alloys used in the power and petrochemical industries.

The addition of Molybdenum provides the weld metal with increased strength and resistance to thermal deformation (creep) at service temperatures up to 530°C. Available in 0.8mm, 1.0mm, and 1.2mm diameters on standard 15kg spools, Weld Star-A30 delivers a stable arc, minimal spatter, and high X-ray quality integrity. Whether you are fabricating high pressure boilers, steam piping, or chemical processing equipment, this wire ensures the metallurgical reliability required for heat exposed joints.

Key Features

Molybdenum Alloyed (ER70S-A1): Designed for high temperature service and creep resistance in carbon-molybdenum steels.

Precision Size Range:

0.8mm: Ideal for thin walled pipework and root passes.

1.0mm & 1.2mm: The standard for high productivity fabrication on boilers and pressure vessels.

Service Temperature Rated: Suitable for continuous operation in environments reaching up to 530°C.

High X-Ray Quality: Produces clean, sound weld deposits that meet the rigorous testing standards of the pressure vessel industry.

Excellent Feedability: Precision copper coating and layer winding ensure smooth feeding through long MIG torch liners.

Compatibility: Primarily used for welding 16Mo3, DIN 15Mo3, and ASTM A335 Grade P1 steels.

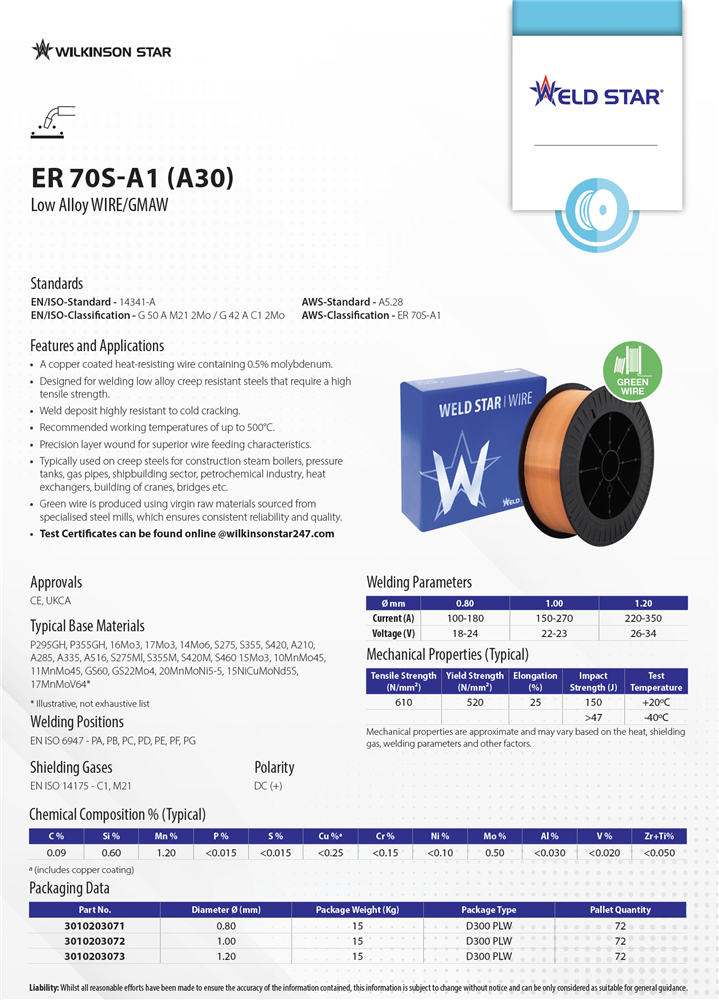

Download Product Specification Manual.
