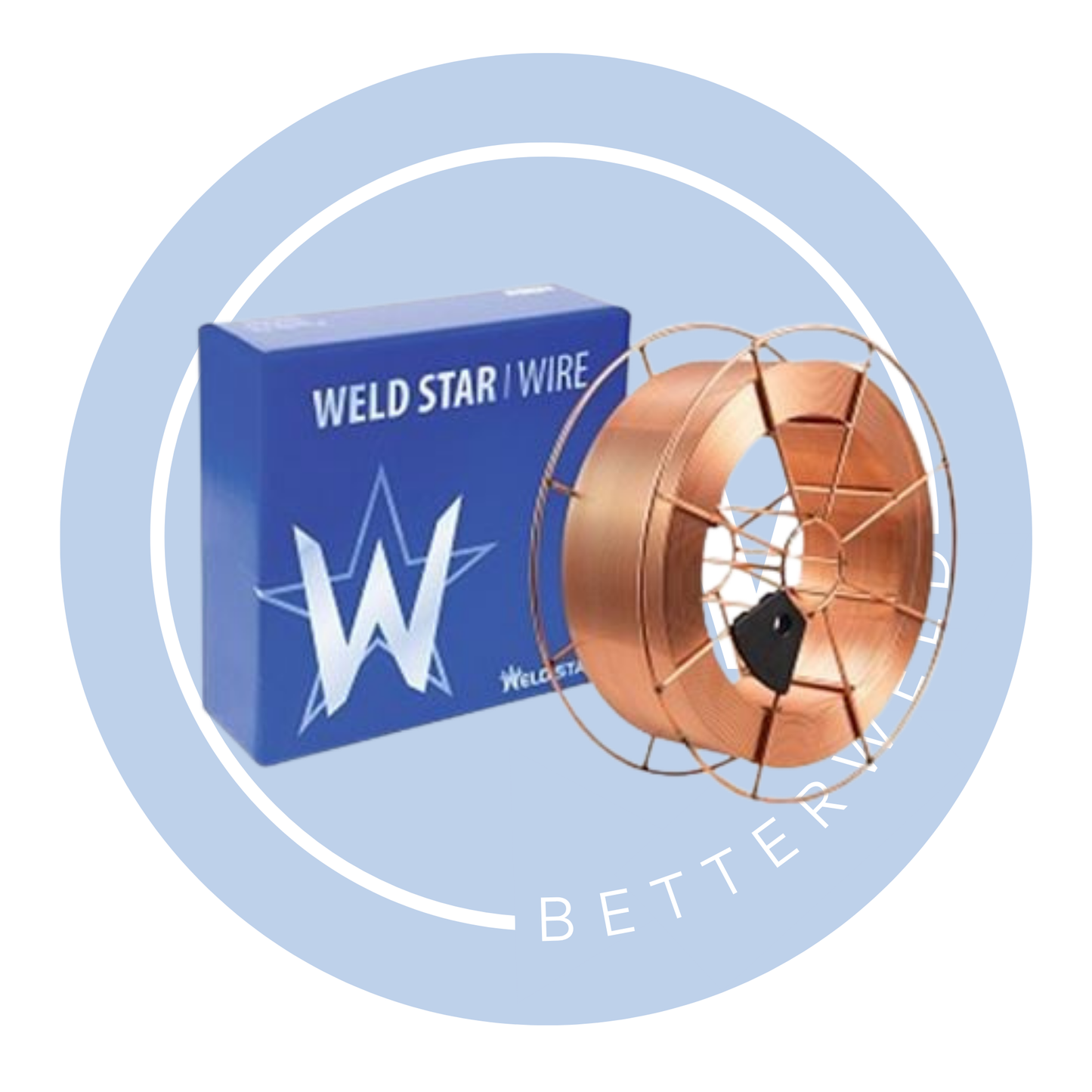

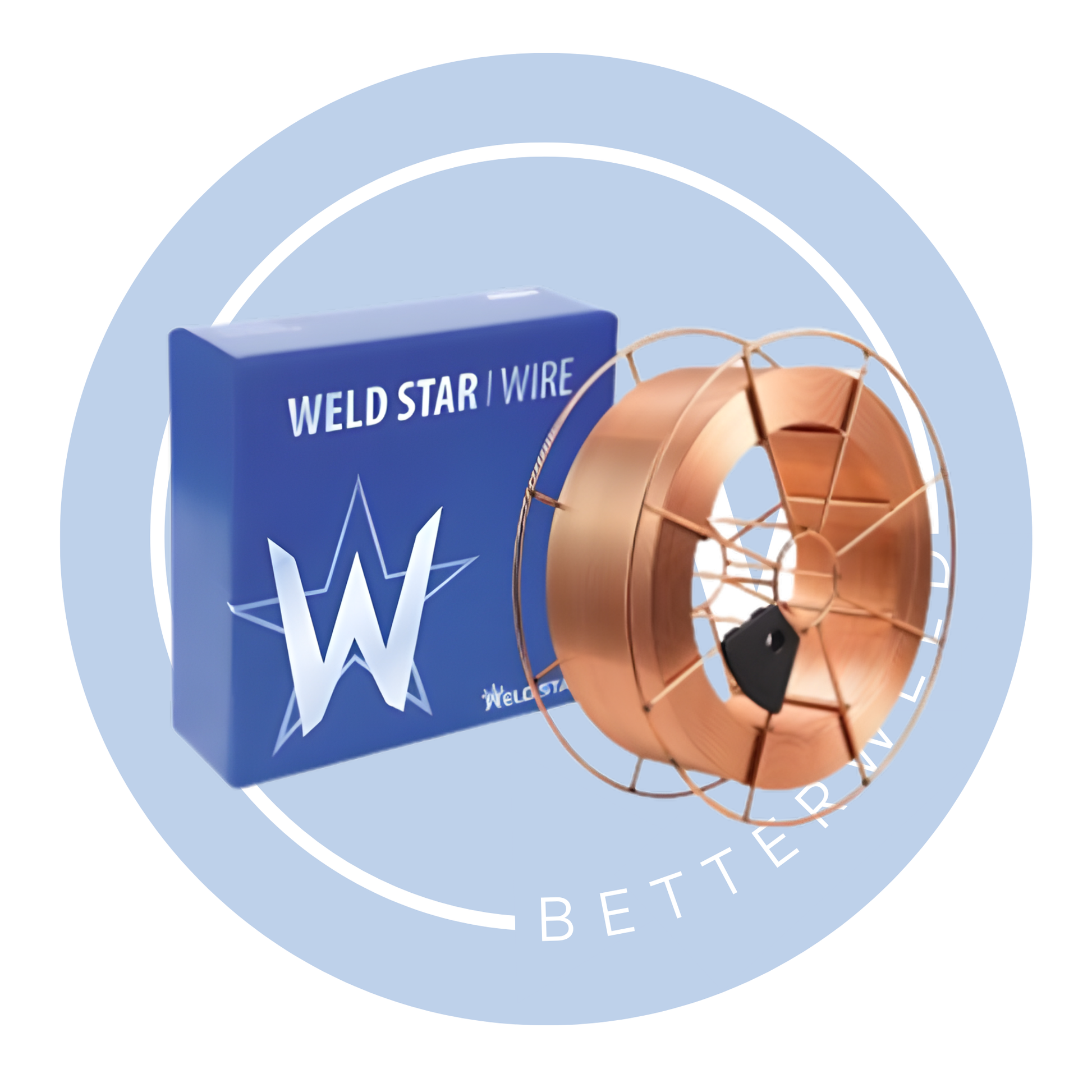

Weld Star SG3 G4Si1 Wire [15kg Basket]

The Weld Star SG3 (G4Si1) is an elite grade solid MIG wire designed for the high strength welding of unalloyed and structural steels. While standard SG2 wires are sufficient for general work, the SG3 is alloyed with increased levels of Manganese (Mn) and Silicon (Si). This specific chemistry provides two major advantages: superior deoxidation, which helps prevent porosity when welding over light rust or mill scale, and a higher tensile strength in the finished weld.

This wire is engineered for high productivity environments where weld integrity is non negotiable. It offers a very stable arc, low spatter levels, and excellent feed ability. Precision layer wound on an environmentally friendly 15kg BS300 basket spool, it is the industry standard for structural engineering, heavy machinery manufacturing, and pressure vessel fabrication.

Key Features

Enhanced Deoxidation: Higher Silicon and Manganese levels ensure a cleaner weld pool, even on materials with light surface contamination.

Higher Tensile Strength: Delivers superior mechanical properties compared to standard SG2/G3Si1 wires.

Stable High Current Arc: Performs exceptionally well at high amperages, offering a smooth spray transfer with minimal spatter.

X-Ray Quality Soundness: Designed to meet the stringent requirements of structural and pressure vessel inspections.

Eco-Friendly Basket Spool: Supplied on a 15kg BS300 wire basket, reducing plastic waste and ensuring high precision layer winding for snag free feeding.

Versatile Application: Suitable for a wide range of steels, including S235 through to S460 structural grades.

Download Product Specification Manual.
