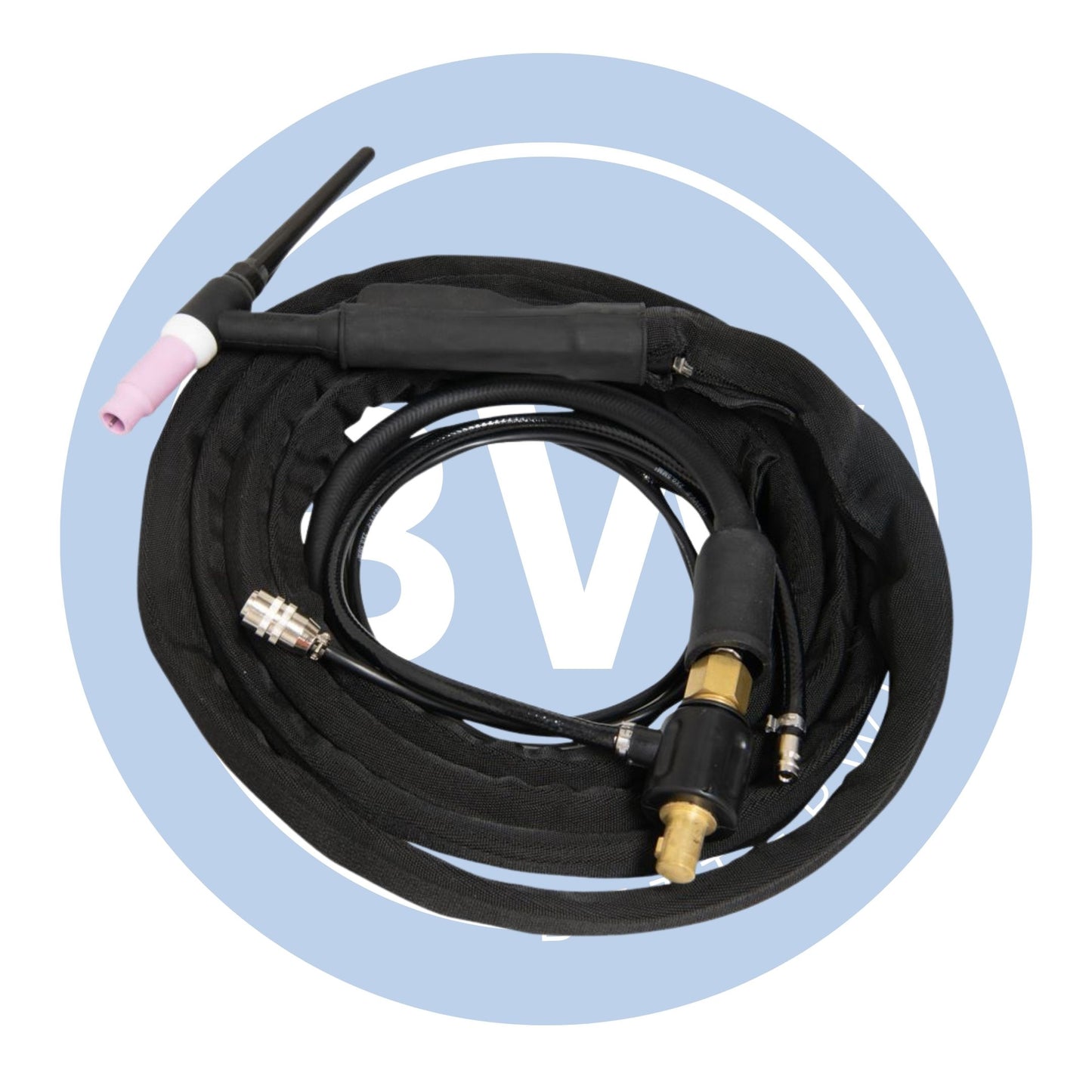

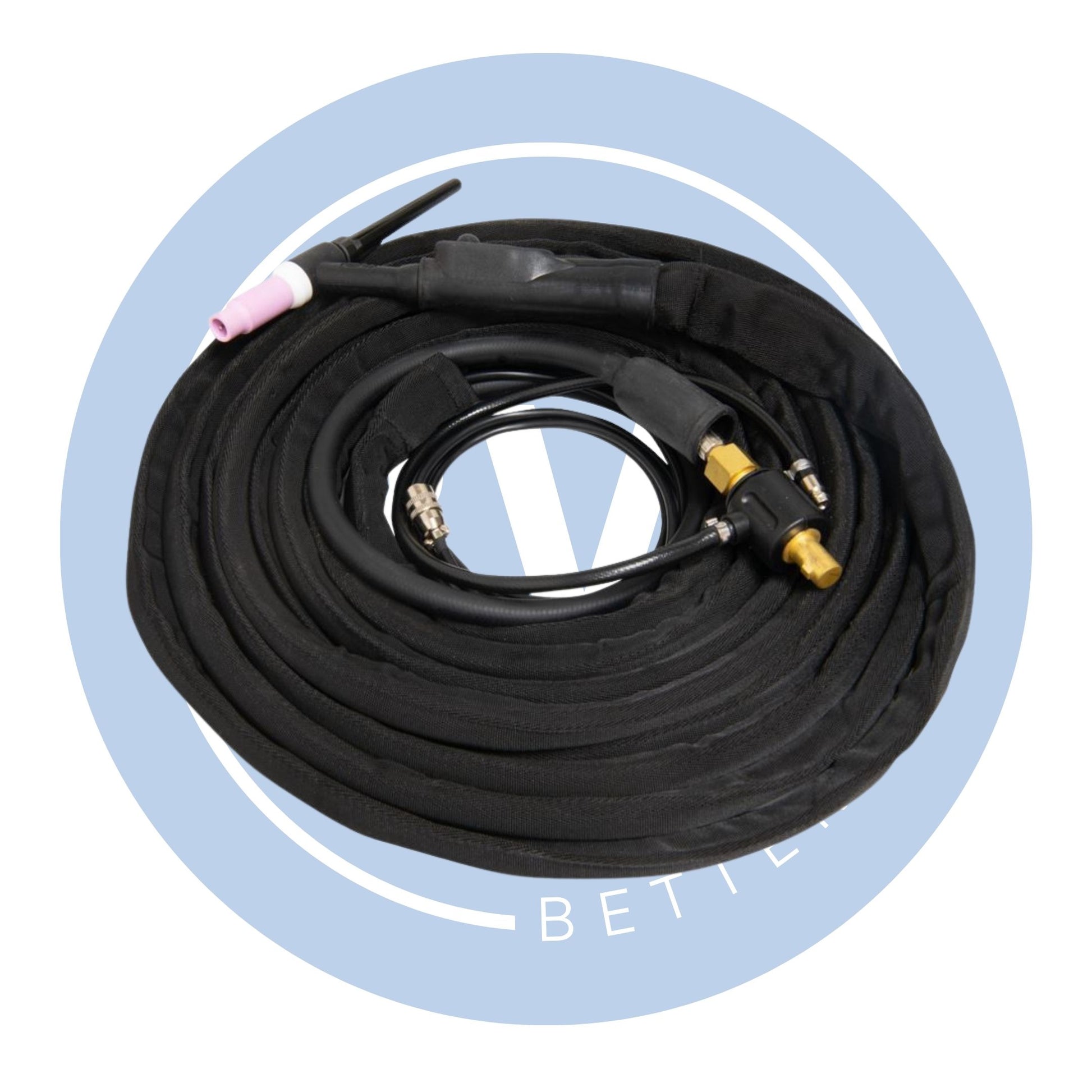

12.5ft WP17 TIG Torch [Twist Lock Adaptor & Switch Plug]

The WP17 12.5ft TIG Torch is the definitive replacement or upgrade for the Jasic TIG 200P-PFC (JT-200P-PFC). Engineered for precision and ease of use, this 150 amp air cooled torch provides the perfect balance of power and manoeuvrability for fabrication on mild steel, stainless, and aluminium.

These torches come fully assembled with a 35/50 Twist Lock (Dinse) Adaptor and an integrated switch plug. To ensure 100% compatibility with the various versions of the Jasic 200P-PFC series, we offer two distinct wiring configurations:

TIG-71: The standard configuration for modern Jasic 200P-PFC units (typically utilising the circular 5 pin aviation plug).

TIG-37: An alternative configuration designed for specific production runs or legacy control interfaces.

With a high flex cable set and an ergonomic handle, these torches are built to handle high frequency (HF) starts and provide the stable arc control that Jasic inverters are known for.

Key Features

Jasic 200P-PFC Optimised: Specifically wired and fitted to match the JT-200P-PFC power source.

12.5ft (4m) Length: The ideal workshop length, offering mobility without excessive gas flow resistance.

35/50 Dinse Adaptor: Features the large twist lock power connection with integrated gas flow.

150A Air Cooled Performance: Reliable 60% duty cycle at 150A, perfect for light to medium fabrication.

Ergonomic Handle with Switch: Textured grip with a responsive momentary switch for instant arc control.

High Frequency (HF) Ready: Advanced insulation prevents HF leakage, protecting the machine's digital display and PCB.
